15KVA / 15KW 3 Phase Battery Backup Power, Inc. UPS Protecting Critical Server Rack

Check out photos below of this 15KVA / 15KW 3 phase Battery Backup Power, Inc. UPS (uninterruptible power supply) protecting a critical server rack from power outages, surges, and voltage fluctuations. The installation was completed by Empire Technologies, (909) 417-4875, empiretechs.com in Southern California. Total installation from delivery to power up took under 6 hours including wiring the 3 phase output panel, conduit installation, circuit/receptacle installation, and testing/verification of functionality.

The UPS is fed by a 45 amp 3 pole breaker. The UPS output feeds a 3 phase panel which then splits the 3 phases into 3 separate 120 volt single phase circuits. Each of those circuits feeds it own duplex receptacle for the server rack (seen below). All 3 phase systems available from Battery Backup Power, Inc. can be found at and purchased from: https://www.backupbatterypower.com/collections/3-phase.

Battery Backup Power 15KVA 15KW 3 Phase UPS In Data Center  Battery Backup Power 3 Phase 15KVA 15KW UPS In Server Room
Battery Backup Power 10KVA 15KVA 20KVA 3 Phase UPS In Server Room Battery Backup Power 3 Phase 10KVA 15KVA 20KVA UPS System

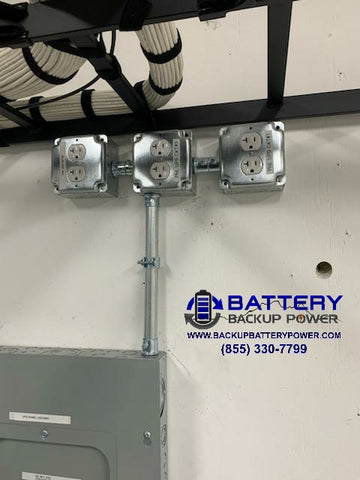

Battery Backup Power 3 Phase 10KVA 15KVA 20KVA UPS Output To Wall Receptacle Battery Backup Power UPS 3 Phase Wiring Input Output 10KVA 15KVA 20KVA



Battery Backup Power UPS 3 Phase Wiring Diagram 120/208Y


Additional networking and security work completed by Empire Technologies can be viewed below.
