This is a plug and play system. An 208-240 Volt, NEMA L6-30R (Receptacle) on a 30 amp breaker in your laboratory is all you need. Rolling casters allow you to easily move the entire unit from room to room for use wherever there is a 208-240 Volt, NEMA L6-30R (Receptacle) available.
User Guides:
-Battery Backup Power 6KVA-10KVA Tower UPS User Guide
-Battery Backup Power 6KVA-10KVA External Battery Pack Tower UPS User Guide
-Battery Backup Power 6KVA-10KVA Tower UPS Parallel System Installation Guide
-Battery Backup Power 6KVA-10KVA Tower UPS Transformer User Guide
Spec Sheet/Cut Sheet:
-BBP 4.5-20KVA Tower DSP Series Specification Sheet.pdf
Complete 5 Tier Power Protection System – Surge Protection, Real Time Power Conditioning With Voltage Regulation, Heavy Duty Isolation Transformer, Pure Sine Wave Output, & Always On Double Conversion Backup Power Technology.
Multiple Backup Time Options:
| Model Number: | Description (Under Battery Options Drop Down): | Approximate Backup Time At Full Load: |
| BBP-AR-6000-PSW-ONL | UPS With Internal Batteries Only (20 Batteries, 12 Volts, 9 Amp Hours Each) | 15 Minutes |
| BBP-AR-6000-PSW-ONL-WEBPWC | UPS Plus 1 Extra External Battery Pack (80 Batteries, 12 Volts, 9 Amp Hours Each) | 1 Hour 0 Minutes |
| BBP-AR-6000-PSW-ONL-W2EBPWC | UPS Plus 2 Extra External Battery Packs (140 Batteries, 12 Volts, 9 Amp Hours Each) | 1 Hour 45 Minutes |
| BBP-AR-6000-PSW-ONL-W3EBPWC | UPS Plus 3 Extra External Battery Packs (200 Batteries, 12 Volts, 9 Amp Hours Each) | 2 Hours 31 Minutes |
| BBP-AR-6000-PSW-ONL-W4EBPWC | UPS Plus 4 Extra External Battery Packs (260 Batteries, 12 Volts, 9 Amp Hours Each) | 3 Hours 16 Minutes |
| BBP-AR-6000-PSW-ONL-W5EBPWC | UPS Plus 5 Extra External Battery Packs (320 Batteries, 12 Volts, 9 Amp Hours Each) |
4 Hours 1 Minutes |
*Note: The 6 kVA model now has 9 amp hour batteries installed instead pf the standard 7 amp hour batteries. This increases battery capacity and backup time by approximately 22%.
- 6000 VA (6 kVA) / 5,400 Watt (5.4 kW)
- N+1 And Parallel Operation Up To 24 kVA (4 Units In Series)
- Energy Efficient/High Efficiency UPS Mode
- LCD Status Measurements Include Voltage, Frequency, Load Level, Battery Level, Output Current, and Estimated Remaining Backup Time
- Tower With Casters
- Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
- Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay (Phase Locked To Input Power Source)
- Wide Frequency Input Range (44-66 Hz Auto Sensing) Allows For Generator Power To Be Used As A Primary Or Secondary Input Power Source (Using Automatic Transfer Switch Before UPS)
- Constant Voltage Regulation (±1%)
- Constant Frequency Regulation (±1 or ±3% Selectable)
- Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
- Optional Extended Warranty: 5 Years On Electronics And 1 Year Warranty On Batteries
- Digital Signal Processing (DSP) Allows For Greater Reliability Over Older UPS Designs And Superior Electric Noise Filtration
- >0.99 Input Power Factor / 0.9 Output Power Factor (Line Mode) / High Efficiency Mode For Superior Efficiency And Power Savings

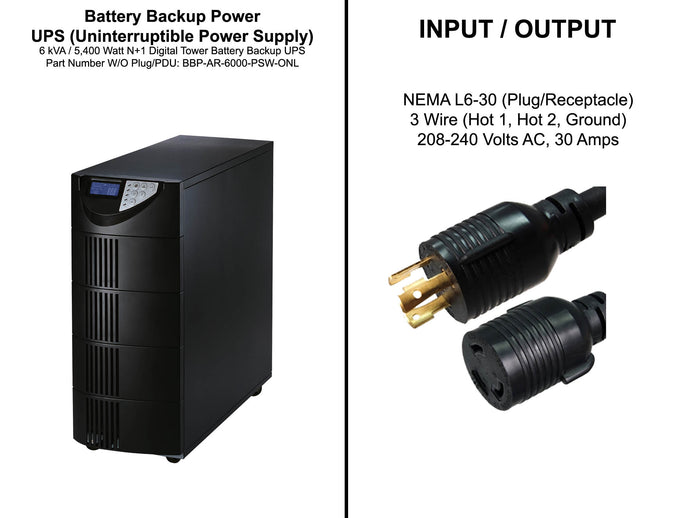

- INPUT: NEMA L6-30P (Plug)
- 208, 220, 230, or 240 Volts Single Phase, 30 Amps Minimum
- OUTPUT: NEMA L6-30R (Receptacle)
- 208 Volts Single Phase
- UPS Weight (Excluding Optional External Battery Packs): 264 lbs.
- Dimensions (Inches): 11.4 X 29.5 X 25.4 (W x H x D)
- Operating Temperature: 32°-104° F
- Operating Humidity: 20%~95%, Non-Condensing
- Operating Elevation: 3,280 Feet Without De-Rating
- Cold Start Capable (Shipped With Cold Start Disabled, Will Enable Automatically After Receiving Power For The First Time After Shipping)
- cTUVus, cULus, and FCC Certified
- Includes Software For Windows Monitoring & Configuration
Replacement Batteries:
-Leoch DJW12-9.0 (Lead Acid), Leoch LP12-9.0 (Lead Acid), Betta Batteries 6-HCNFJ-7.2 (Lead Crystal), Or Battery Backup Power BBP-LIFEPO4-HDR-12V-7.2AH (Lithium Iron Phosphate)
Do you need a PDF quote or a custom emergency backup solution? Email us at engineering@batterybackuppower.com.
