AC Output: Nominal Voltage (Vac L-L): 120/208, 3ph
AC Input: Nominal Voltage (Vac L-L): 120/208, 3ph
DC Input/Output (Nominal): 358VDC

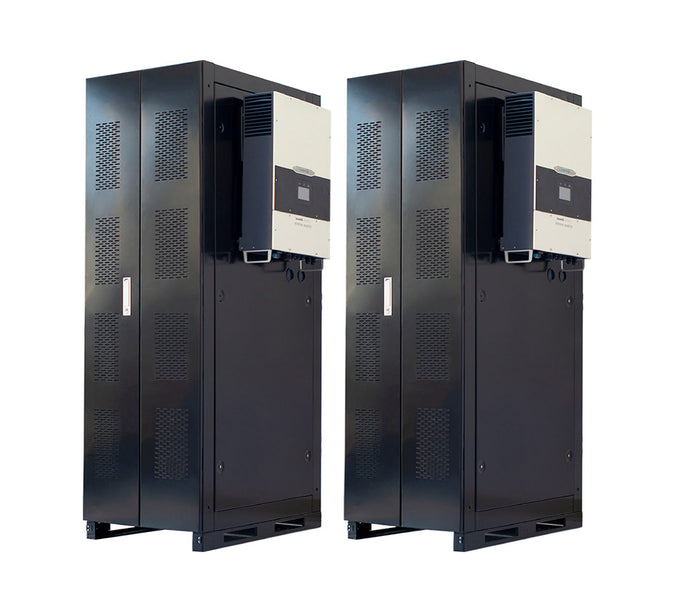

System Description:
• 60kW @ 120/208VAC Output (4W+G)
• Smart Inverter plus Lithium Batteries are built in one cabinet
• Power Resistor for regenerative energy Included
• Enclosure Rating: NEMA-1 (IP 20)
• Dimension: 40”x 48”x 80”; Weight: 3,000 lbs. (1362 kg.)
Transformer: Included
