4 Tier Power Protection System – Surge Protection, Real Time Power Conditioning With Voltage Regulation, Pure Sine Wave Output, & Always On Double Conversion Backup Power Technology (Phase Locked To Utility Power Allowing Seamless Transition To Backup Power).
Multiple Backup Time Options:
| Model Number: | Description (Under Battery Options Drop Down): | Approximate Backup Time At Full Load: |
| BBP-AR-3000RM-PSW-ONL | UPS With Internal Batteries Only (6 Batteries, 12 Volts, 9 Amp Hours Each) 0.65 KWH | 11 Minutes |
| BBP-AR-3000RM-PSW-ONL-WEBP | UPS Plus 1 Extra External Battery Pack (18 Batteries, 12 Volts, 9 Amp Hours Each) 1.94 KWH | 35 Minutes |
| BBP-AR-3000RM-PSW-ONL-W2EBP | UPS Plus 2 Extra External Battery Packs (30 Batteries, 12 Volts, 9 Amp Hours Each) 3.24 KWH | 58 Minutes |
| BBP-AR-3000RM-PSW-ONL-W3EBP | UPS Plus 3 Extra External Battery Packs (42 Batteries, 12 Volts, 9 Amp Hours Each) 4.54 KWH | 1 Hour 22 Minutes |
| BBP-AR-3000RM-PSW-ONL-W4EBP | UPS Plus 4 Extra External Battery Packs (54 Batteries, 12 Volts, 9 Amp Hours Each) 5.83 KWH | 1 Hour 46 Minutes |
| BBP-AR-3000RM-PSW-ONL-W5EBP | UPS Plus 5 Extra External Battery Packs (66 Batteries, 12 Volts, 9 Amp Hours Each) 7.13 KWH | 2 Hours 10 Minutes |
- 3000 VA (3 kVA) / 2,700 Watt (2.7 kW)
- 55-150 Volt AC Input / 100/110/115/120/127 Volt AC Output
- Energy Efficient/High Efficiency UPS Mode >96.5% Efficiency When Enabled
- LCD Status Measurements Include Voltage, Frequency, Load Level, Battery Level, Output Current, and Estimated Remaining Backup Time

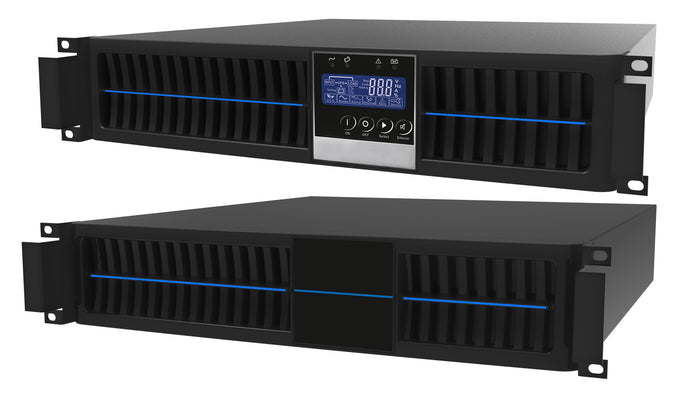

- Rack Mount (2U)
- Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
- Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay (Phase Locked To Input Power Source)
- Wide Frequency Input Range (44-66 Hz Auto Sensing) Allows For Generator Power To Be Used As A Primary Or Secondary Input Power Source (Using Automatic Transfer Switch Before UPS)
- Constant Voltage Regulation (±2%)
- Constant Frequency Regulation (±1 or ±3% Selectable)
- Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
- Optional Extended Warranty: 5 Years On Electronics And 1 Year Warranty On Batteries
- Digital Signal Processing (DSP) Allows For Greater Reliability Over Older UPS Designs And Superior Electric Noise Filtration
- >0.99 Input Power Factor / 0.9 Output Power Factor (Line Mode) / 0.965 Output Power Factor (High Efficiency Mode) For Superior Efficiency And Power Savings
- INPUT: 120 Volt, 30 Amp NEMA L5-30P (Twist Lock Plug)
- OUTPUT:
- 6x 120 Volt, NEMA 5-15/20R Battery & Surge Protected Receptacles (Standard Wall Receptacles)
- 1x 120 Volt, NEMA L5-30P (Twist Lock Receptacle)
- Weight: 59.5 lbs.
- Dimensions (Inches): 17.3 X 3.5 X 23.7 (W x H x D) 2U
- Operating Temperature: 32°-104° F
- Operating Humidity: 20%~95%, Non-Condensing
- Operating Elevation: 3,280 Feet Without De-Rating
- Cold Start Capable (Shipped With Cold Start Disabled, Will Enable Automatically After Receiving Power For The First Time After Shipping)
- cTUVus, cULus, and FCC Certified
- Includes Software For Windows Monitoring & Configuration
Replacement Batteries:
-Leoch DJW12-9.0 (Lead Acid), Leoch LP12-9.0 (Lead Acid), Betta Batteries 6-HCNFJ-7.2 (Lead Crystal), Or Battery Backup Power BBP-LIFEPO4-HDR-12V-7.2AH (Lithium Iron Phosphate)
