The battery backup uninterruptible power supply (UPS) and power conditioner for Stratasys F900 3D printer with surge protector automatically provides defense against power problems. Give your 3D printer longer life while protecting it from harmful dirty power problems that may otherwise damage or degrade its performance. Much more than a battery in a box, every Battery Backup Power, Inc. system doubles as a power conditioner, actively correcting voltage issues left unresolved by the power company or created by other power hungry electronics in your production area (laser printers, HVAC systems, refrigeration equipment, etc.). Don’t lose your 3D print job 11 hours into a 12 hour print job because of a voltage problem or short term power outage.
Do you need a PDF quote or a custom emergency backup solution? Email us at engineering@batterybackuppower.com.
UPS User/Installation Guide:
BBP-AR-33 10K-40K 3 Phase UPS User And Installation Guide
Spec Sheet/Cut Sheet:
BBP-AR-33 10K-40K 3 Phase UPS Model Specifications
External Battery Cabinet User/Installation Guide:
BBP-AR-33-EBP Battery Cabinet User And Installation Guide
4 Tier Power Protection System – Surge Protection, Real Time Power Conditioning With Voltage Regulation, Pure Sine Wave Output, & Always On Double Conversion Backup Power Technology (Phase Locked To Utility Power Allowing Seamless Transition To Backup Power).
***Includes specialty equipment and startup procedure that allows compatibility with the Stratasys F900 3D printer ~500 amp inrush current.
***Includes specialty equipment and startup procedure that allows compatibility with the Stratasys F900 3D printer ~500 amp inrush current.
Do you need a PDF quote or a custom emergency backup solution? Email us at engineering@batterybackuppower.com.
Multiple Backup Time Options:
| Model Number: | Description (Under Battery Options Drop Down): | Approximate Backup Time At Full Load: |
| BBP-AR-33-40K-STRATASYSF900 | UPS Only (No Batteries) - Line Conditioning Only | 0 Minutes |

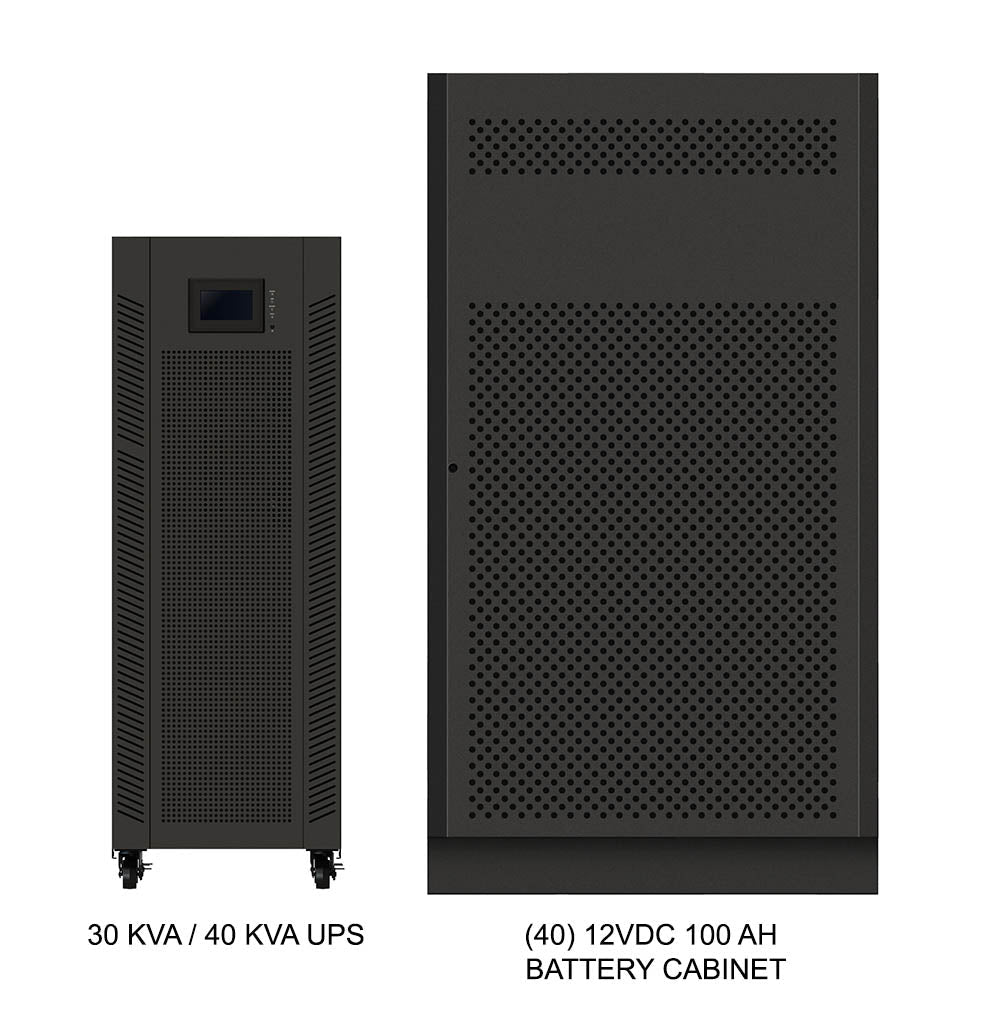

| BBP-AR-33-40K-STRATASYSF900-WEBP | UPS Plus 1 Extra External Battery Pack (40 Batteries, 12 Volts, 100 Amp Hours Each) 48 KWH | 35 Minutes |

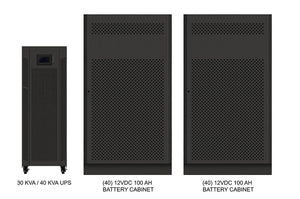

| BBP-AR-33-40K-STRATASYSF900-W2EBP | UPS Plus 2 Extra External Battery Packs (80 Batteries, 12 Volts, 100 Amp Hours Each) 96 KWH | 1 Hour 10 Minutes |

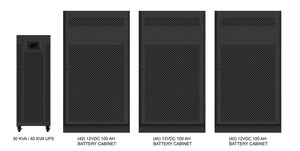

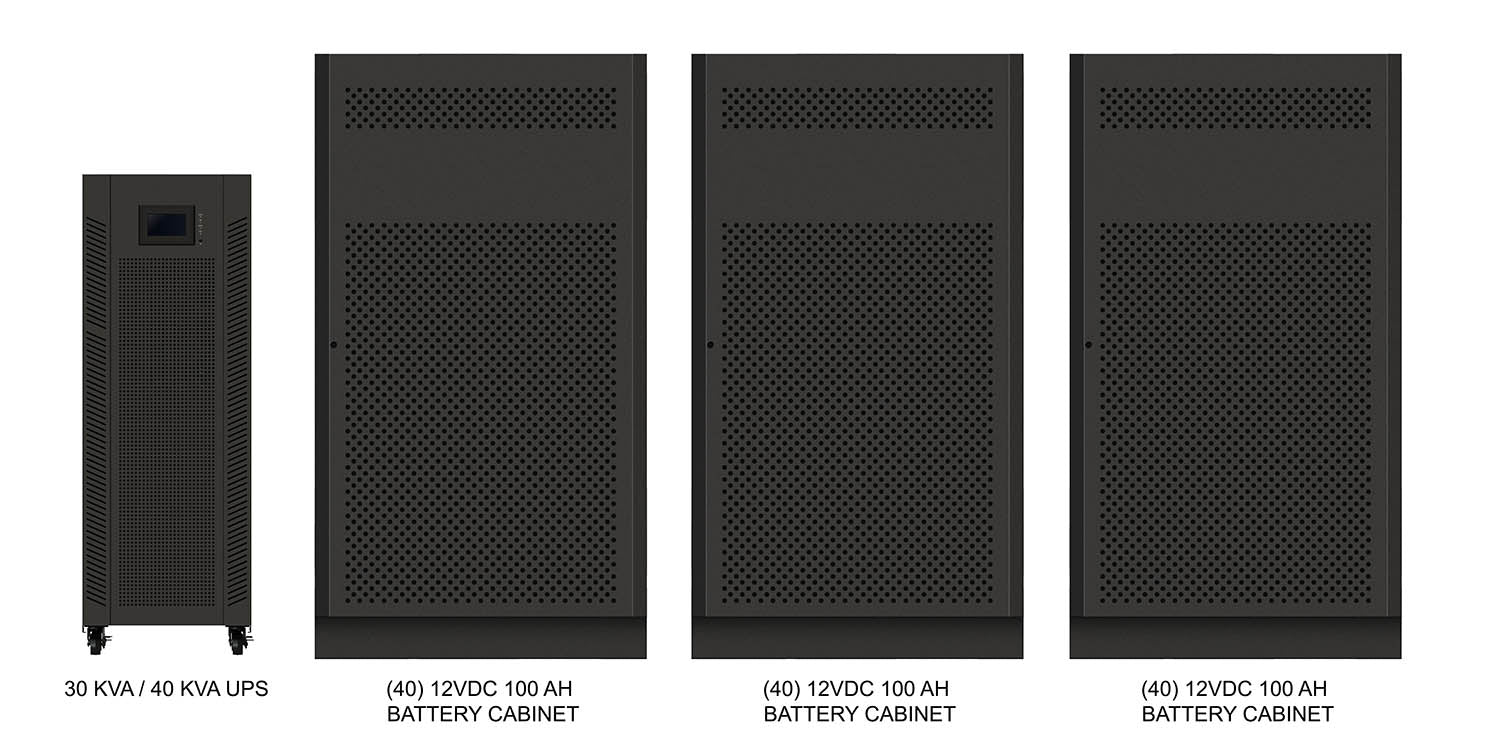

| BBP-AR-33-40K-STRATASYSF900-W3EBP | UPS Plus 3 Extra External Battery Packs (120 Batteries, 12 Volts, 100 Amp Hours Each) 144 KWH | 1 Hours 45 Minutes |

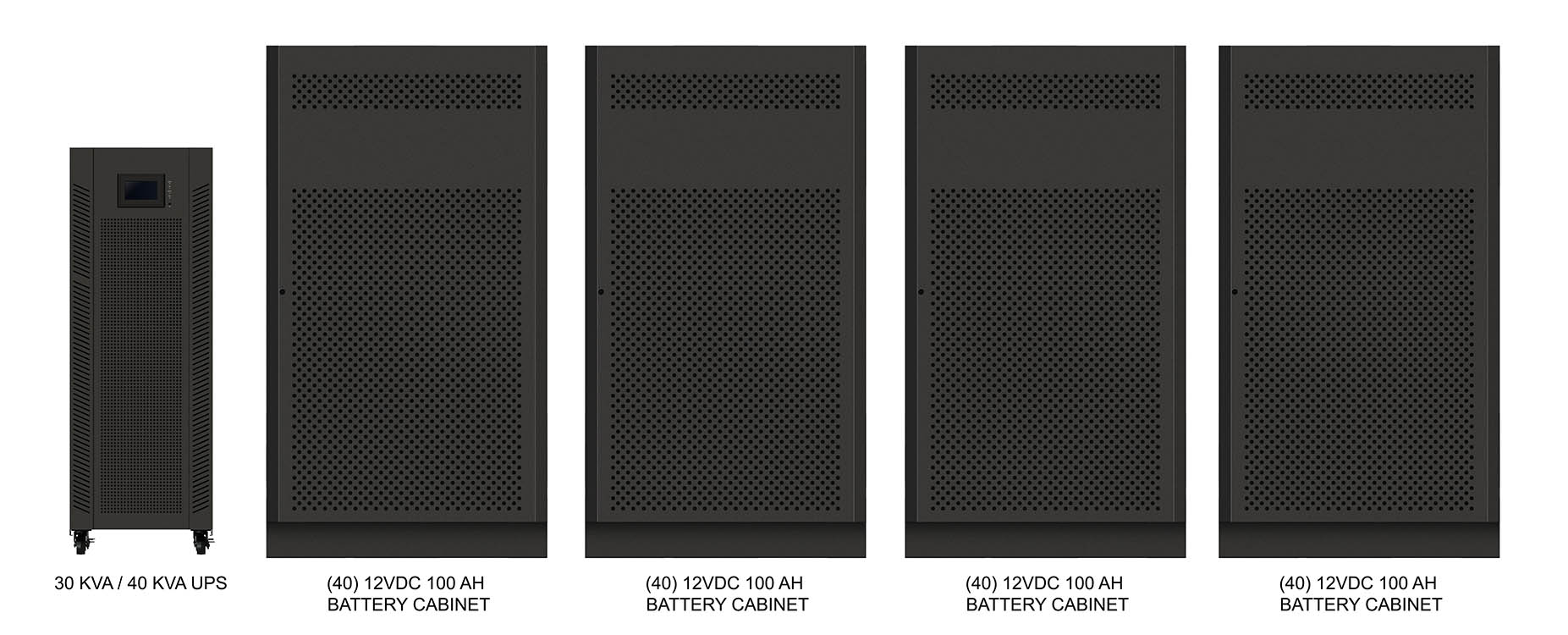

| BBP-AR-33-40K-STRATASYSF900-W4EBP | UPS Plus 4 Extra External Battery Packs (160 Batteries, 12 Volts, 100 Amp Hours Each) 192 KWH | 2 Hours 21 Minutes |

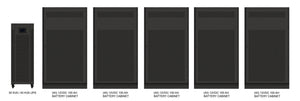

| BBP-AR-33-40K-STRATASYSF900-W5EBP | UPS Plus 5 Extra External Battery Packs (200 Batteries, 12 Volts, 100 Amp Hours Each) 240 KWH | 2 Hours 56 Minutes |

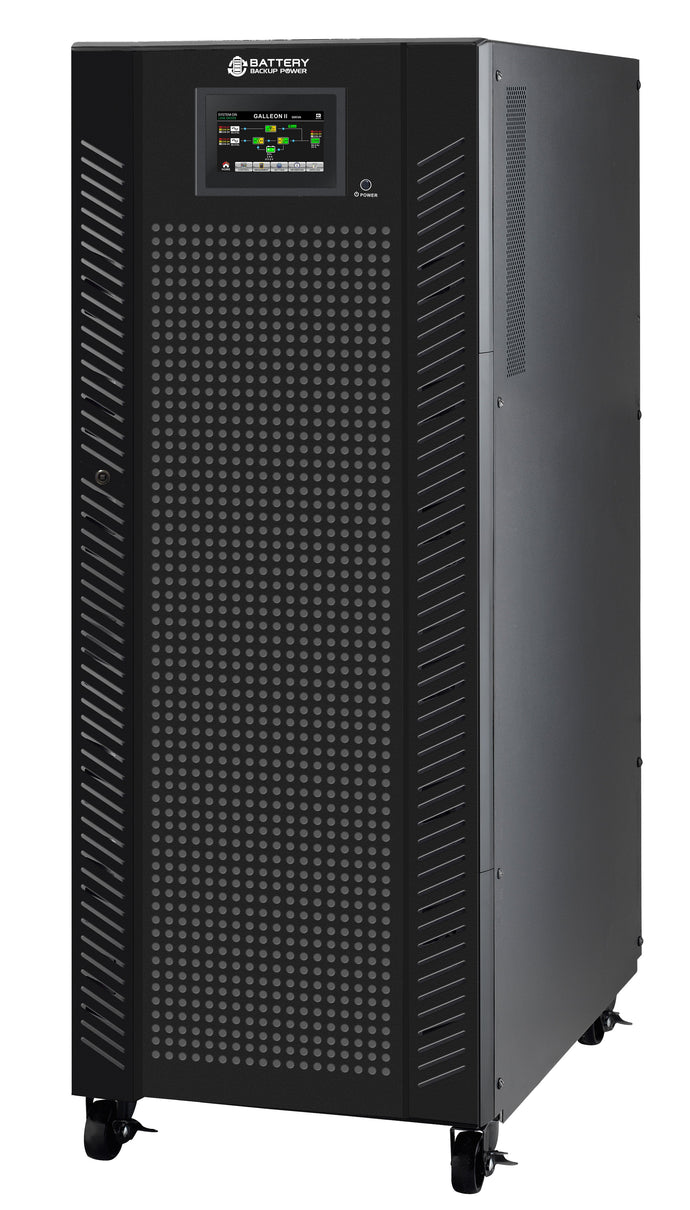

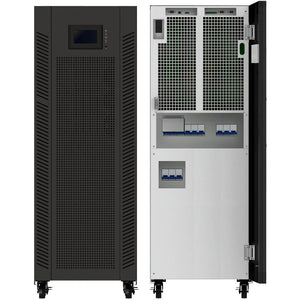

- Model: BBP-AR-33-40K-STRATASYSF900
- 40000 VA (40 kVA) / 40000 Watt (40 kW)
- 3 Phase
- Tower
- Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
- Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay
- Accepts Generator Power (Direct or On Automatic Transfer Switch)
- Constant Voltage Regulation
- Constant Frequency Regulation
- Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
- Optional Extended Warranty: 6 Years On Electronics And 3 Year Warranty On Batteries
- Heavy Duty Industrial Grade For Constant Use
- For Use With Laboratory Instruments
- For Use With Medical Devices
- For Use With Hospital Equipment
- For Use With Sensitive IT Equipment
- 1.0 Power Factor (Unity Power Factor)
- UL Listed
- Management And Monitoring Software Included
- Battery Configuration:
- Requires 1 Or More External Battery Cabinets
- Contact Us For More Information
- Input:
- 138~270 VAC 3 Phase @ 50% Load
- 173~253 VAC 3 Phase @ 100% Load
- Output:
- 208/220 VAC 3 Phase
- Full Load Estimated Run Time On Battery Power:
- Contact Us For Battery Cabinet Configurations
- Operating Temperature Rating: 0C ~ +40C
- Humidity: <95% And Non-Condensing

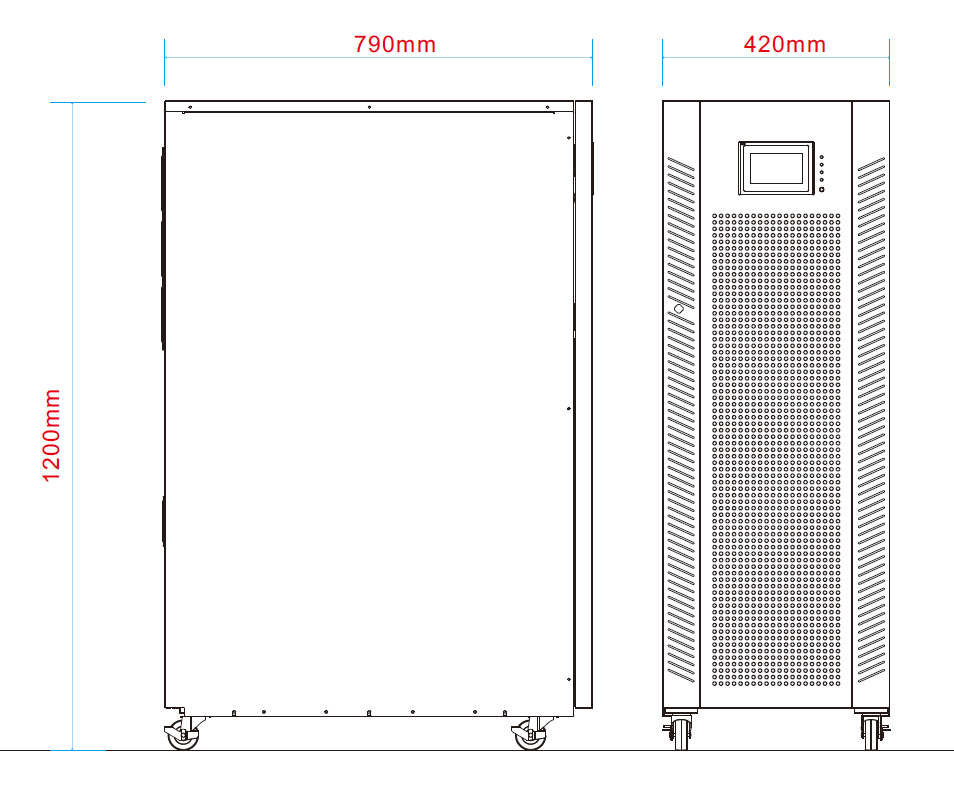

- Dimensions D X W X H (mm): 790 X 420 X 1200 / (inches) 31.5” X 17” X 47.5”
- Net Weight: 113 Kgs. (249 lbs.)
