The battery backup uninterruptible power supply (UPS) and power conditioner for Stratasys Fortus 360mc 3D printer with surge protector automatically provides defense against power problems. Give your 3D printer longer life while protecting it from harmful dirty power problems that may otherwise damage or degrade its performance. Much more than a battery in a box, every Battery Backup Power, Inc. system doubles as a power conditioner, actively correcting voltage issues left unresolved by the power company or created by other power hungry electronics in your production area (laser printers, HVAC systems, refrigeration equipment, etc.). Don’t lose your 3D print job 11 hours into a 12 hour print job because of a voltage problem or short term power outage.
Do you need a PDF quote or a custom emergency backup solution? Email us at engineering@batterybackuppower.com.
Multiple Backup Time Options:
| Model Number: | Description (Under Battery Options Drop Down): | Approximate Backup Time At Full Load: |
| BBP-AR-33-20K-STRATASYSF360MC | UPS With Internal Batteries Only (60 Batteries, 12 Volts, 9 Amp Hours Each) 6.48 KWH | 9 Minutes |

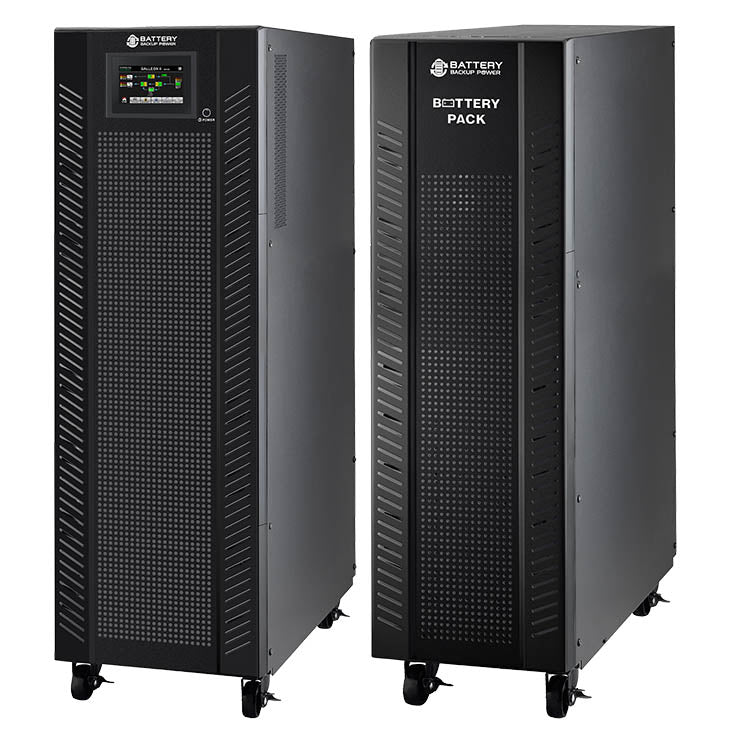

| BBP-AR-33-20K-STRATASYSF360MC-WEBP | UPS Plus 1 Extra External Battery Pack (140 Batteries, 12 Volts, 9 Amp Hours Each) 15.12 KWH | 22 Minutes |

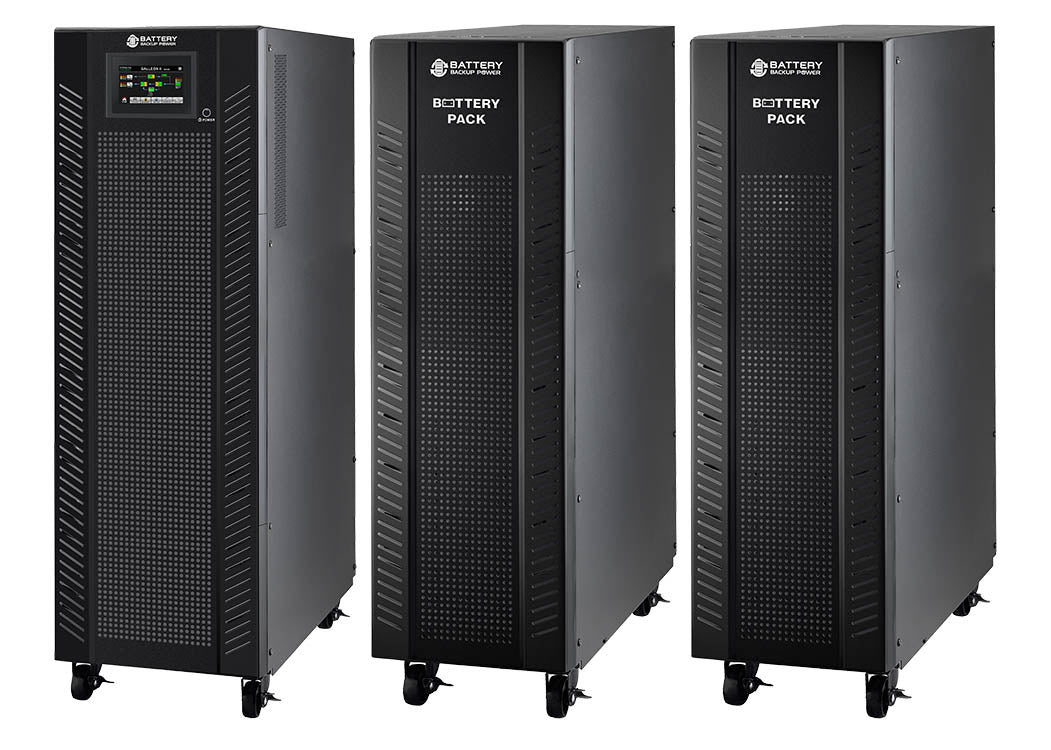

| BBP-AR-33-20K-STRATASYSF360MC-W2EBP | UPS Plus 2 Extra External Battery Packs (220 Batteries, 12 Volts, 9 Amp Hours Each) 23.76 KWH | 34 Minutes |

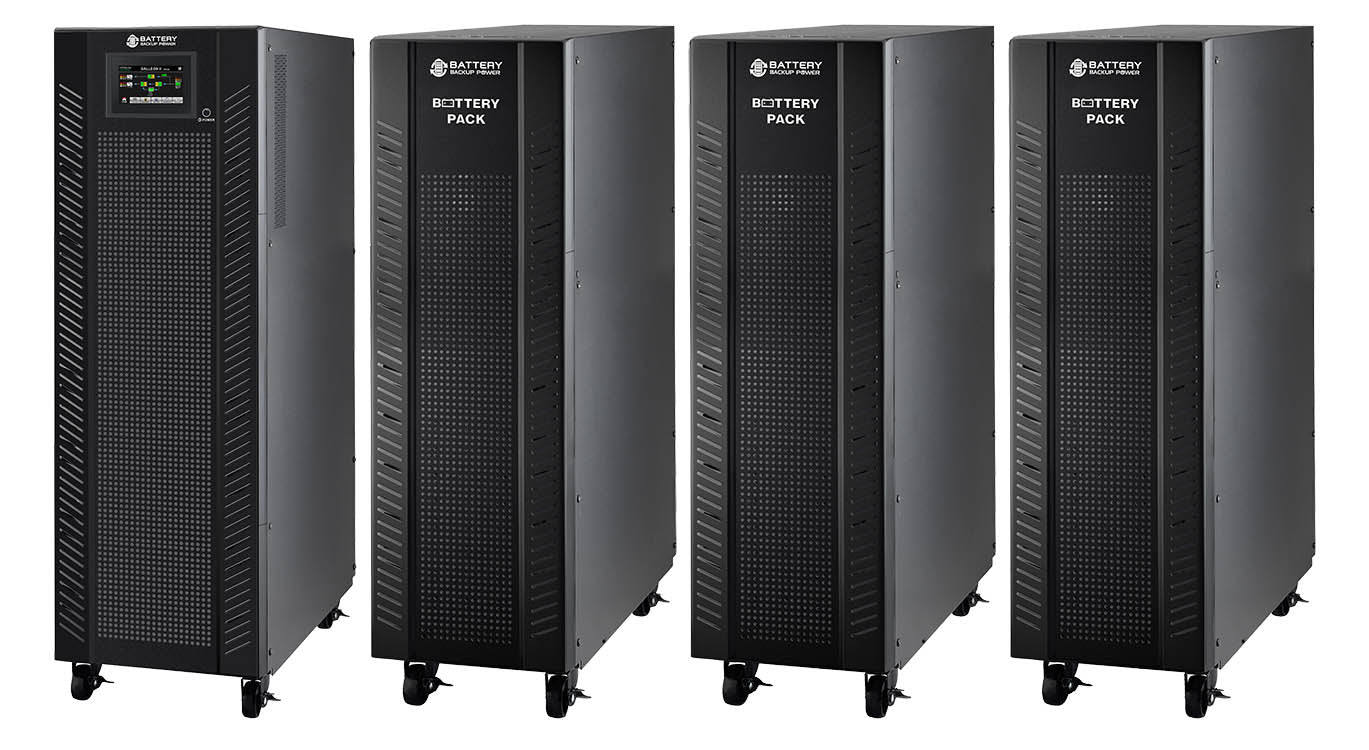

| BBP-AR-33-20K-STRATASYSF360MC-W3EBP | UPS Plus 3 Extra External Battery Packs (300 Batteries, 12 Volts, 9 Amp Hours Each) 32.40 KWH | 47 Minutes |

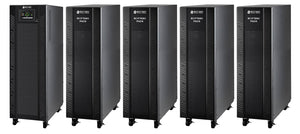

| BBP-AR-33-20K-STRATASYSF360MC-W4EBP | UPS Plus 4 Extra External Battery Packs (380 Batteries, 12 Volts, 9 Amp Hours Each) 41.04 KWH | 1 Hour 0 Minutes |

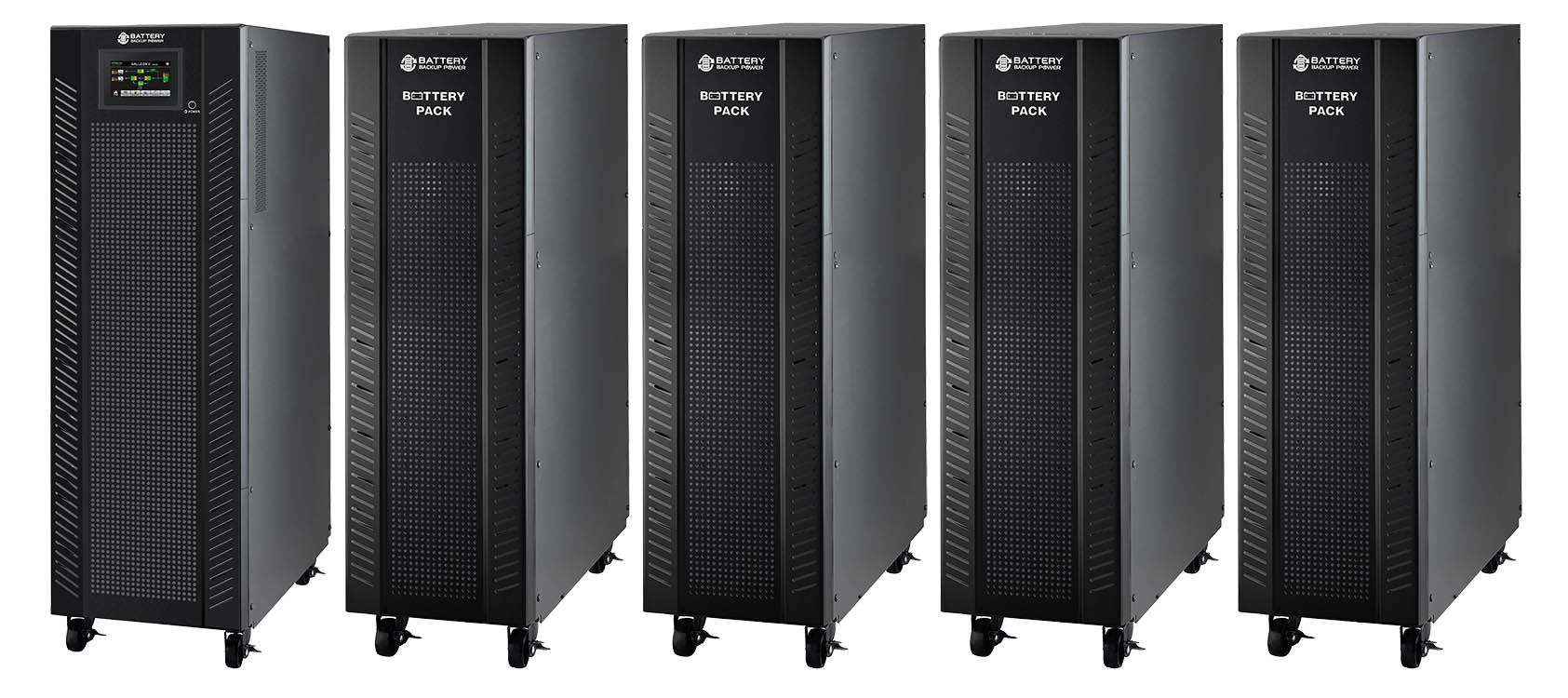

| BBP-AR-33-20K-STRATASYSF360MC-W5EBP | UPS Plus 5 Extra External Battery Packs (460 Batteries, 12 Volts, 9 Amp Hours Each) 49.68 KWH | 1 Hour 13 Minutes |

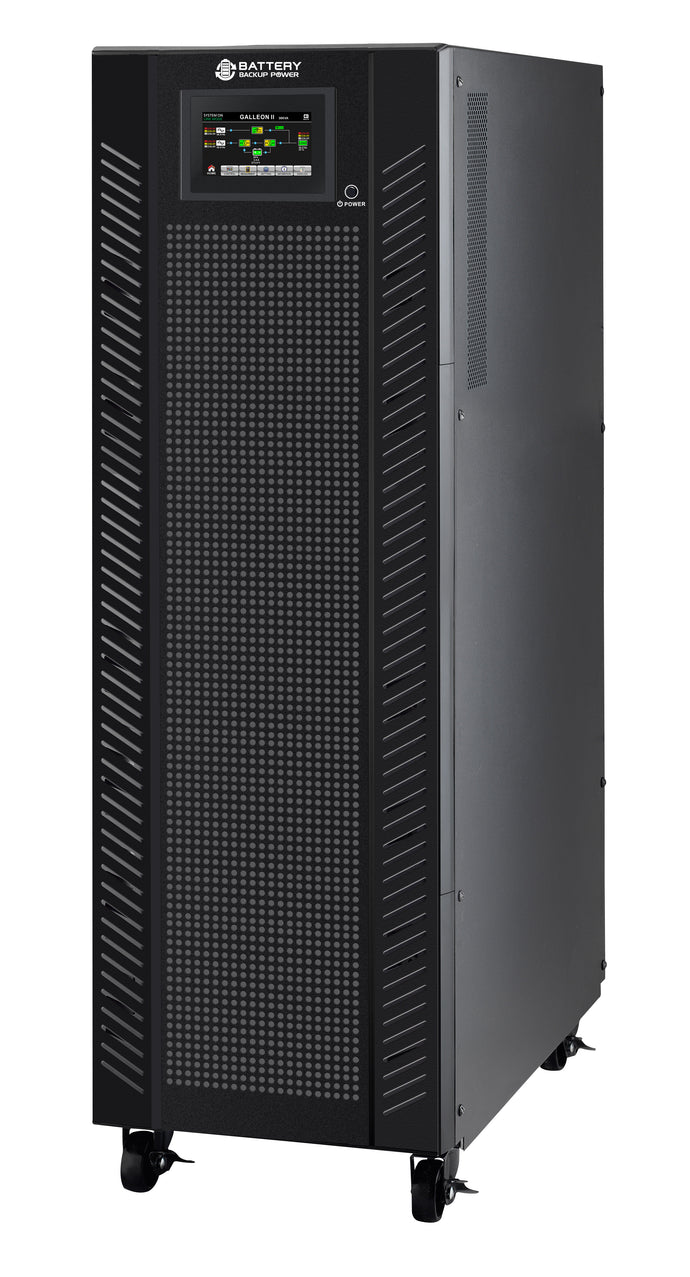

- Model: BBP-AR-33-20K-STRATASYSF360MC
- 20000 VA (20 kVA) / 20000 Watt (20 kW)
- 3 Phase
- Tower
- Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
- Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay
- Accepts Generator Power (Direct or On Automatic Transfer Switch)
- Constant Voltage Regulation
- Constant Frequency Regulation
- Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
- Optional Extended Warranty: 6 Years On Electronics And 3 Year Warranty On Batteries
- Heavy Duty Industrial Grade For Constant Use
- For Use With Laboratory Instruments
- For Use With Medical Devices
- For Use With Hospital Equipment
- For Use With Sensitive IT Equipment
- 1.0 Power Factor (Unity Power Factor)
- UL Listed
- Management And Monitoring Software Included
- Battery Configuration:
- Built In 60x 12 Volt 9 Amp Hour Batteries
- 9 Minutes (Full Load)
- 18 Minutes (Half Load)
- Add 1 Or More External Battery Cabinets To Extend Backup Time
- Contact Us For More Information
- Input:
- 138~270 VAC 3 Phase @ 50% Load
- 173~253 VAC 3 Phase @ 100% Load
- Output:
- 220 VAC 3 Phase
- Full Load Estimated Run Time On Battery Power:
- 9 Minutes With Internal Batteries
- Contact Us For Additional Battery Cabinet Configurations
- Operating Temperature Rating: 0C ~ +40C
- Humidity: <95% And Non-Condensing
- Dimensions D X W X H (mm): 815 X 300 X 1000
- Net Weight: 231 Kgs. (509 lbs.)
User Guide:
BBP-AR-33 10K-40K 3 Phase UPS User And Installation Guide
Spec Sheet/Cut Sheet:
BBP-AR-33 10K-40K 3 Phase UPS Model Specifications
