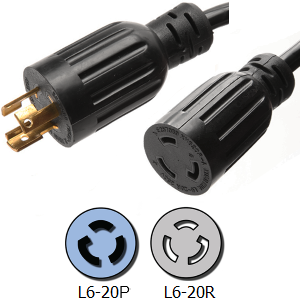

The battery backup UPS (uninterruptible power supply) and power conditioner for the Sakura Tissue-Tek Xpress x120 provides automatic seamless emergency backup power to the instrument. Plug the battery backup UPS into an available L6-20R (Receptacle, 208-240 Volts, 20 Amps) wall socket, then plug the Sakura Tissue-Tek Xpress x120 into the provided NEMA L6-20R (Receptacle, 200 Volts) on the back of the battery backup UPS, turn it on, and forget about it.
If utility power is lost while the Sakura Tissue-Tek Xpress x120 is on and connected to the battery backup UPS, the instrument will continue to operate as if power was never lost until either power is restored or battery power is depleted (whichever occurs first). The built in power conditioning function ensures that voltage sags or surges will not damage the power supply of the attached instrument.
Complete 5 Tier Power Protection System – Surge Protection, Real Time Power Conditioning With Voltage Regulation, Heavy Duty Isolation Transformer, Pure Sine Wave Output, & Always On Double Conversion Backup Power Technology.
Extreme Energy Savings - Saves up to $1,892.16 per year over older model 6 KVA UPS systems in annual electricity costs due to energy efficiency enhancements.
Multiple Backup Time Options:
| Model Number: | Description (Under Battery Options Drop Down): | Approximate Backup Time At Full Load: |
| BBP-ADV-6000-PSW-ONL | UPS With Internal Batteries Only (20 Batteries, 12 Volts, 9 Amp Hours Each) 2.16 KWH | 15 Minutes |

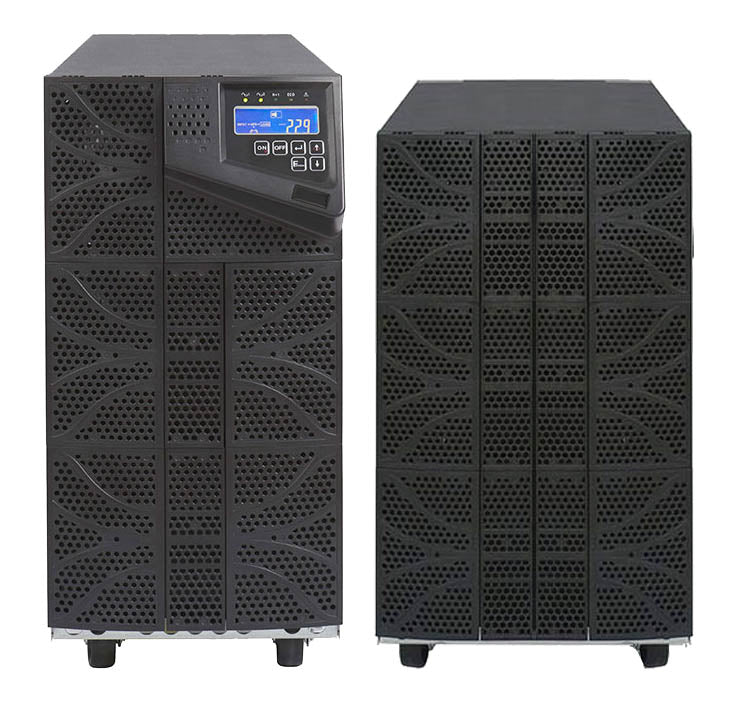

| BBP-ADV-6000-PSW-ONL-WEBPWC | UPS Plus 1 Extra External Battery Pack (80 Batteries, 12 Volts, 9 Amp Hours Each) 8.64 KWH | 1 Hour 0 Minutes |

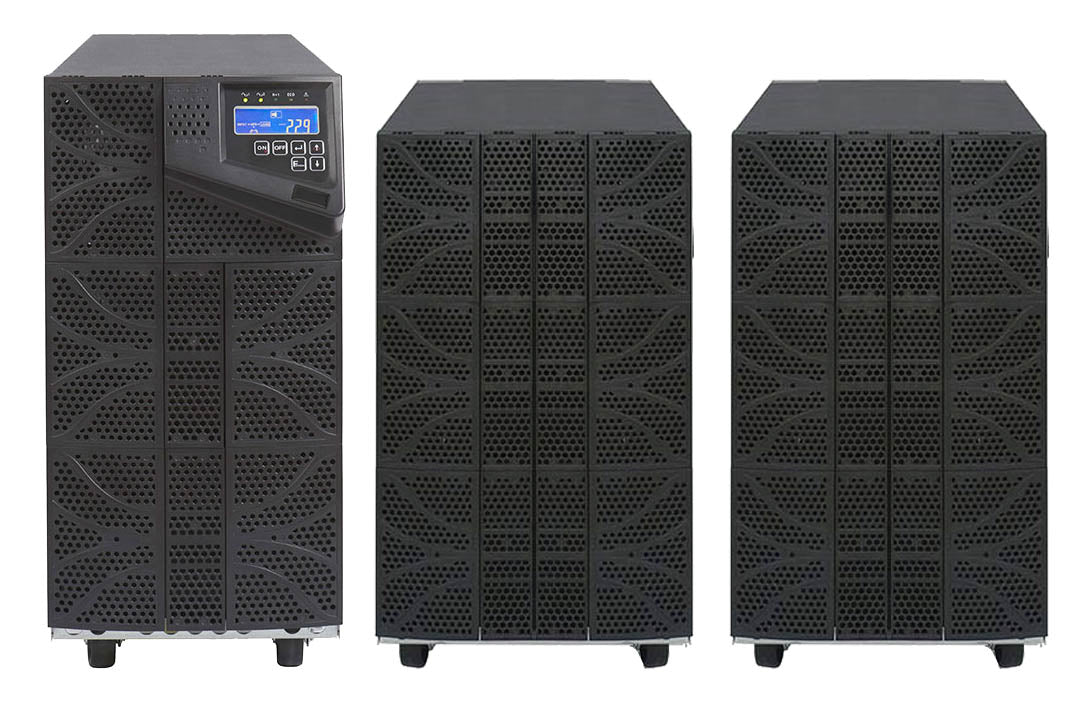

| BBP-ADV-6000-PSW-ONL-W2EBPWC | UPS Plus 2 Extra External Battery Packs (140 Batteries, 12 Volts, 9 Amp Hours Each) 15.12 KWH | 1 Hour 45 Minutes |

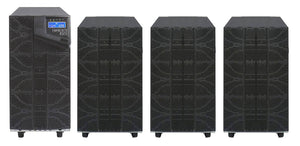

| BBP-ADV-6000-PSW-ONL-W3EBPWC | UPS Plus 3 Extra External Battery Packs (200 Batteries, 12 Volts, 9 Amp Hours Each) 21.60 KWH | 2 Hours 31 Minutes |

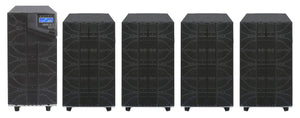

| BBP-ADV-6000-PSW-ONL-W4EBPWC | UPS Plus 4 Extra External Battery Packs (260 Batteries, 12 Volts, 9 Amp Hours Each) 28.08 KWH | 3 Hours 16 Minutes |
| BBP-ADV-6000-PSW-ONL-W5EBPWC | UPS Plus 5 Extra External Battery Packs (320 Batteries, 12 Volts, 9 Amp Hours Each) 34.56 KWH |
4 Hours 1 Minutes |
*Note: The 6 kVA model now has 9 amp hour batteries installed instead pf the standard 7 amp hour batteries. This increases battery capacity and backup time by approximately 22%.
- 6000 VA (6 kVA) / 6,000 Watt (6 kW)
- N+1 And Parallel Operation Up To 24 kVA (4 Units In Series)
- Energy Efficient/High Efficiency UPS Mode
- LCD Status Measurements Include Voltage, Frequency, Load Level, Battery Level, Output Current, and Estimated Remaining Backup Time

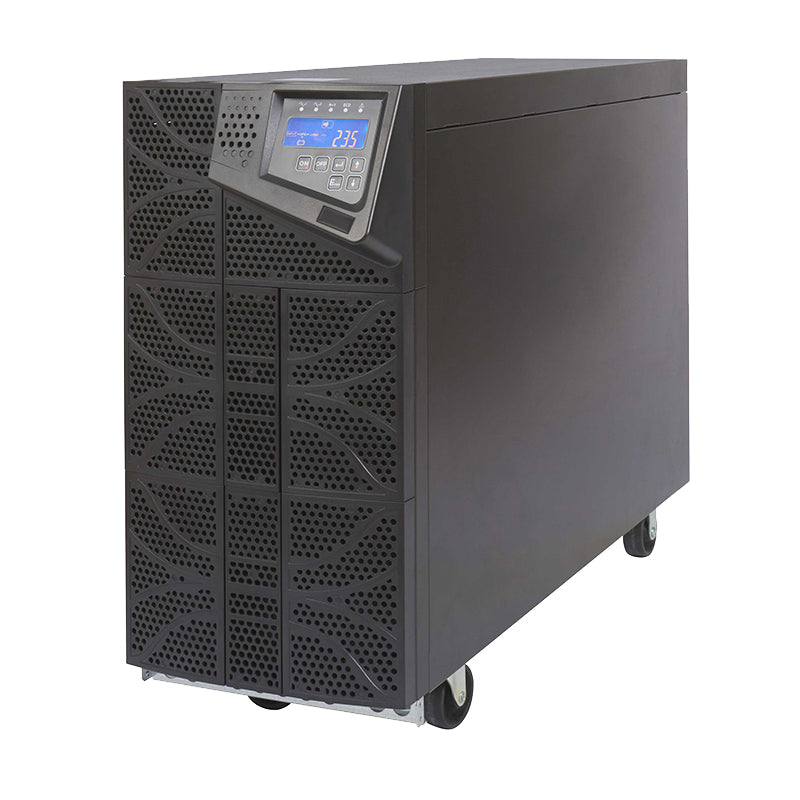

- Tower With Casters
- Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
- Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay (Phase Locked To Input Power Source)
- Wide Frequency Input Range (44-66 Hz Auto Sensing) Allows For Generator Power To Be Used As A Primary Or Secondary Input Power Source (Using Automatic Transfer Switch Before UPS)
- Constant Voltage Regulation (±1%)
- Constant Frequency Regulation (±1 or ±3% Selectable)
- Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
- Optional Extended Warranty: 5 Years On Electronics And 1 Year Warranty On Batteries
- Digital Signal Processing (DSP) Allows For Greater Reliability Over Older UPS Designs And Superior Electric Noise Filtration
- >0.99 Input Power Factor / 1.0 Output Power Factor (Line Mode) / High Efficiency Mode For Superior Efficiency And Power Savings
- INPUT OPTIONS: Hardwire Terminal Block Or NEMA L6-30P (Plug)
- 208, 220, 230, or 240 Volts Single Phase, 30 Amps Minimum
- OUTPUT OPTIONS: Hardwire Terminal Block, NEMA 5-15R (Receptacle), NEMA 5-20R (Receptacle), NEMA L5-30R (Receptacle), NEMA 6-15R (Receptacle), NEMA 6-20R (Receptacle), NEMA L6-15R (Receptacle), NEMA L6-20R (Receptacle), NEMA L6-30R (Receptacle), NEMA 14-30R (Receptacle), Custom (Contact Us For Custom Or Unlisted Options), Or Dual Voltage Multiple Receptacle Box
- 120, 120/240, 120/208, 208, 220, 230, or 240 Volts Single Phase
- UPS Weight (Excluding Optional External Battery Packs): 264 lbs.
- Dimensions (Inches): 9.5 X 26 X 20 (W x H x D)
- Operating Temperature: 32°-104° F
- Operating Humidity: 20%~95%, Non-Condensing
- Operating Elevation: 3,280 Feet Without De-Rating
- Cold Start Capable (Shipped With Cold Start Disabled, Will Enable Automatically After Receiving Power For The First Time After Shipping)
- cTUVus, cULus, and FCC Certified
- Includes Software For Windows Monitoring & Configuration
Replacement Batteries:
-Leoch DJW12-9.0 (Lead Acid), Leoch LP12-9.0 (Lead Acid), Betta Batteries 6-HCNFJ-7.2 (Lead Crystal), Or Battery Backup Power BBP-LIFEPO4-HDR-12V-7.2AH (Lithium Iron Phosphate)
