The external battery pack can be added to any of the UPS models listed below. It greatly extends the battery backup time to the UPS it is attached to via the easy click connect port/cable. Multiple external battery packs can be daisy chained together to greatly extend battery backup time.
This battery pack only has a single cable which easily connects to the main UPS unit (if using 1 battery pack) or first battery pack (if using 2 battery packs).
Each EBP (external battery pack) typically adds 2 hours and 8 minutes to a continuous 100 watt load.
Connection Instructions (See Below Video):
For assistance with your specific backup time requirements, please contact us by chat (bottom right corner), email (engineering@batterybackuppower.com), or by phone (855-330-7799).
Compatible With The Following Battery Backup UPS Models:
- 1 kVA / 900 Watt Battery Backup UPS And Power Conditioner For Sensitive Electronics (Model Number: BBP-1000-PSW-ONL-II)
https://www.backupbatterypower.com/collections/online-double-conversion/products/1-kva-900-watt-battery-backup-ups-and-power-conditioner-for-sensitive-electronics-and-laboratory-instruments
- 1.5 kVA / 1,050 Watt Battery Backup UPS And Power Conditioner For Sensitive Electronics (Model Number: BBP-1500-PSW-ONL-LCD)
https://www.backupbatterypower.com/collections/online-double-conversion/products/1-5kva-double-conversion-battery-backup-power-ups
Specifications:
-Model Number: BBP-1000-PSW-ONL-II-EBP
-Physical Dimensions: 6” X 16.5” X 9.5” Inches (W X H X D)
-Shipping Dimensions: 11" X 21" X 14" Inches (W X H X D)
-Physical Weight: 44 lbs.
-Shipping Weight: 48 lbs.
-Battery Configuration: 6x, 12 Volt, 7.2 Amp Hour Batteries
-36 Volt DC Bus
-Input:

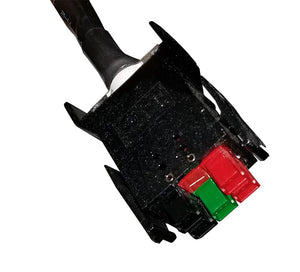

Easy Connect Cable To Main UPS Unit (If Using 1 External Battery Pack) Or First External Battery Pack (If Using 2 External Battery Packs)
-Output:
Easy Connect Cable Port For Secondary External Battery Pack (Optional)
